CM Prosthetics
  • Neodent platform switching concept has proven to preserve the bone level, supporting the peri-implant tissue.
  • The unique prosthetic connection allows to manage a unique prosthetic portfolio regardless of the implant diameter.
  • CM implant line offers a large choice of restorative options (straight, angled, screw-retained or cemented) as well as a full range of titanium base abutments
Alvim CM

CM Abutment

Screw-Retained Restoration

Minimum interocclusal space of 5.0mm from the mucosa level.

Single-unit screw-retained prostheses.

Recommended for posterior restorations.

Alvim CM

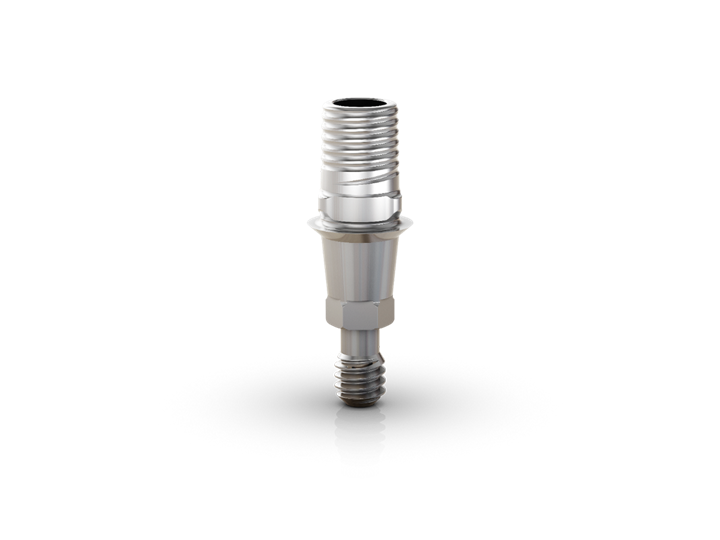

CM Titanium Base

Screw or Cement Retained Restorations

Designed for single unit milled Zirconium restorations, authentic Neodent Ti Bases are prosthetic components developed to ensure the integrity of the implant abutment connection(1,2,3).

Alvim CM

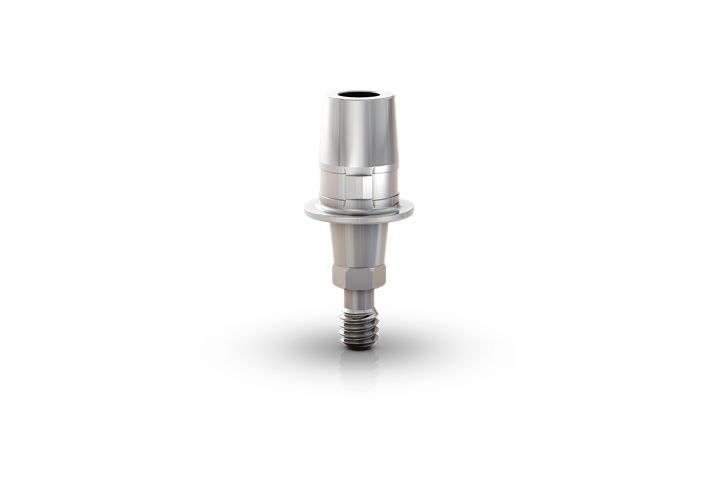

CM Titanium Base for Cerec®

Screw or Cement Retained Restorations

Patient expectations regarding tooth replacement are increasing when it comes to esthetic and treatment duration. With the Neodent Titanium Base for Cerec® access to the chairside implant-borne workflow and offer to your patient quick and esthetic restoration with flexibility and peace of mind. Additionally, this allows to master the whole processes within the dental practice and their added value.

Alvim CM

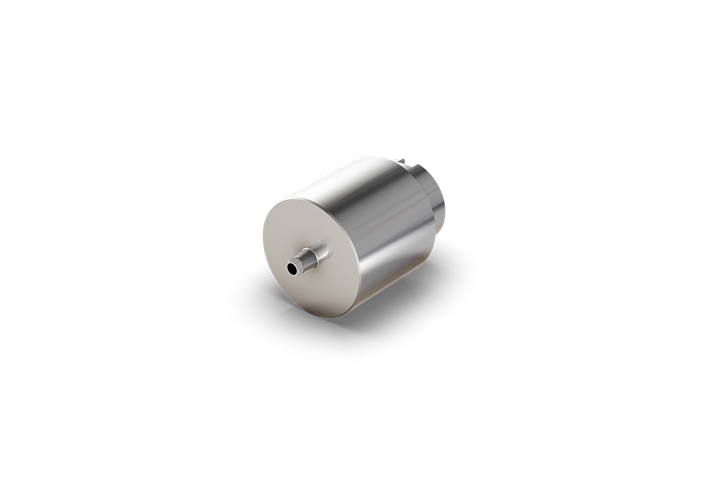

Titanium Blocks for CADCAM

Screw or Cement Retained Restoration

Titanium blocks that allow customization in CAD/CAM systems.



Provides Neodent Original Connections.

Two diameters for customization: 11,5 e 15,8 mm.

Screw is included (CM Line).

Alvim CM

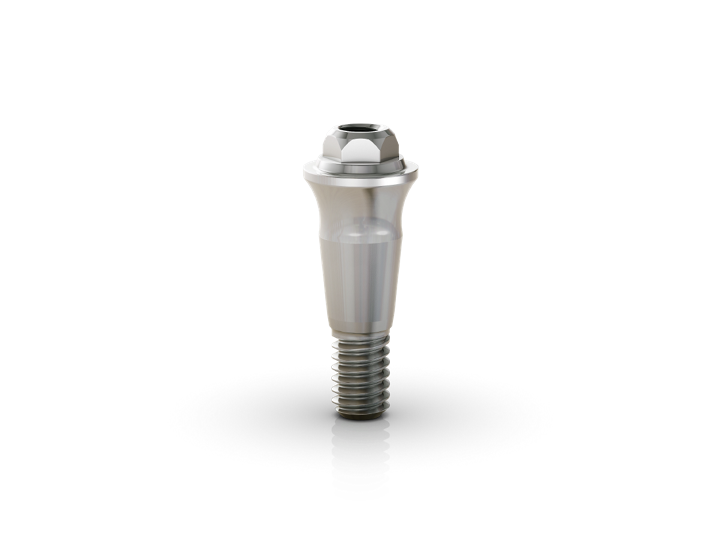

CM Micro Conical Abutment

Screw-Retained Restoration

Minimum interocclusal space of 3.5 mm from mucosa level.

Multiple screw-retained prostheses.

Recommended for CM Implants close to each other.

Alvim CM

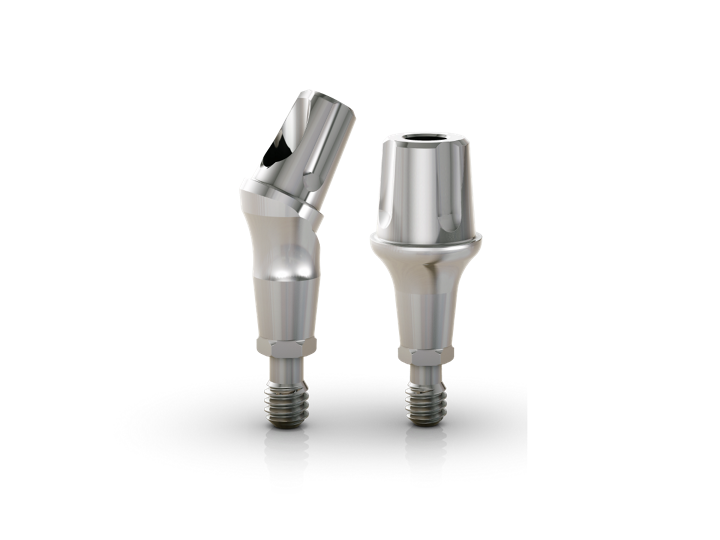

CM Universal Abutment 0°/17°/30°

Cement-Retained Restoration

Cement-retained single-unit prostheses.

Alvim CM

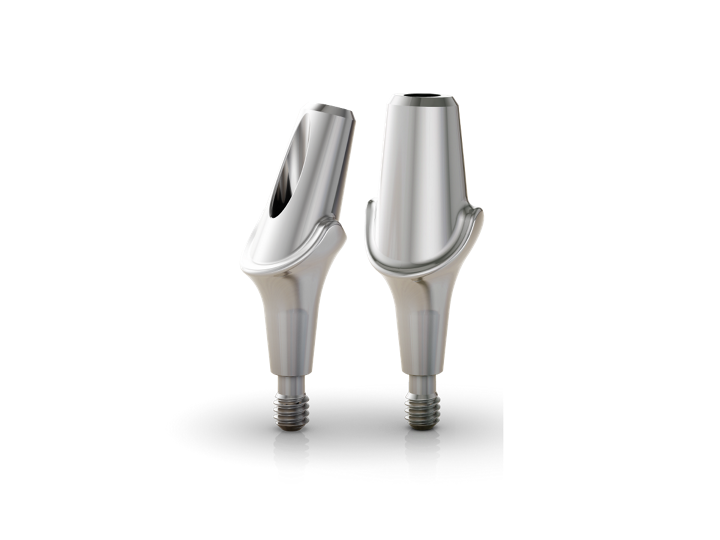

CM Anatomic Abutment

Cement-Retained Restoration

Cement-retained prostheses.

Customizable.

Recommended for anterior zone.

Alvim CM

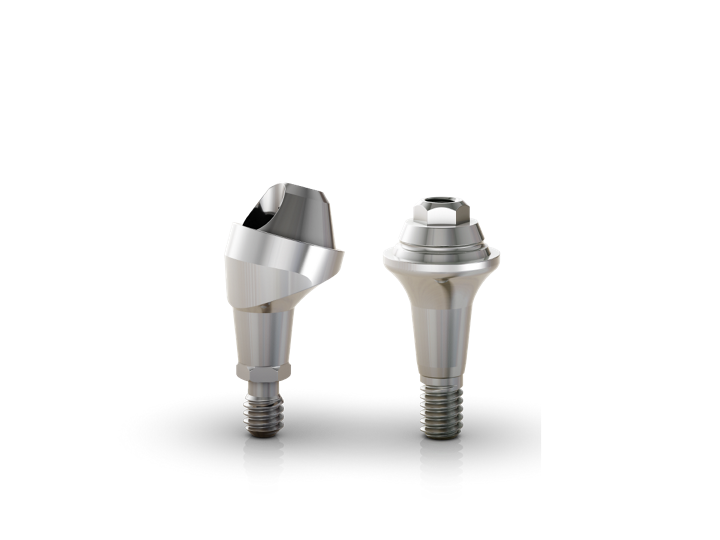

CM Mini Conical Abutment 0°/17°/30°

Screw-Retained Restoration

Minimum interocclusal space of 4.4 mm from mucosa level for straight abutments

Multiple screw-retained prostheses

Alvim CM

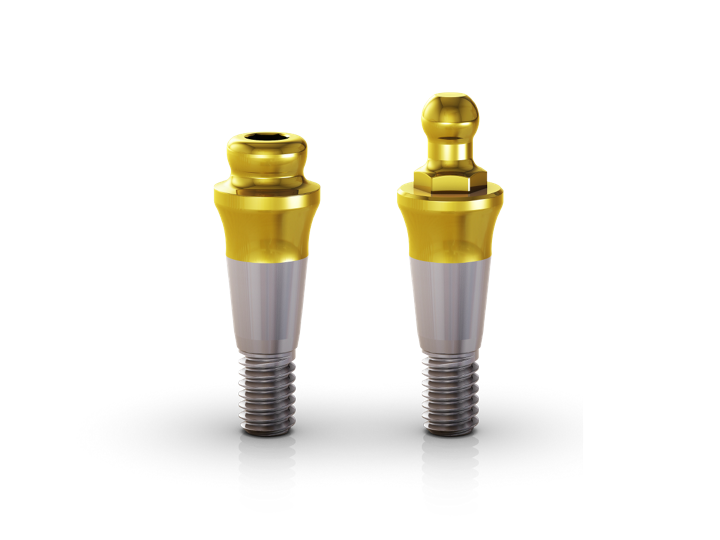

CM Equator Attachment

Removable Restoration

Recommended in-mouth capture, one abutment at a time.

Impression with positioner is required only for Mini Ball Attachment.

O´ring with Cylinder includes Protection Disk.

Equator Attachment allows angulation up to 30˚ between two implants.

Alvim CM

CM Mini Ball Attachment

Removable Restoration

Recommended in-mouth capture, one abutment at a time.

Impression with positioner is required only for Mini Ball Attachment.

O´ring with Cylinder includes Protection Disk.

Equator Attachment allows angulation up to 30˚ between two implants.

Downloads

Global Catalogue

Global Catalogue

Neodent
23.08.2017 PDF, 40 MB Download
See all resources...

References

  1. Berejuk HM, Shimizu RH, Sartori IAM, Tiossi R. Vertical micro gap and passivity of fit of three-unit implant-supported frameworks fabricated using different fabrication techniques. Int J Oral Maxillofac Implants 2014 [In Press], doi: 10.11607.
  2. Dias EC, Bisognin ED, Harari ND, Machado SJ, da Silva CP, Soares GD, Vidigal GM Jr.Evaluation of implant-abutment microgap and bacterial leakage in five external-hex implant systems: an in vitro study. Int J Oral Maxillofac Implants. 2012 Mar-Apr;27(2):346-51.
  3. de França DGB, Morais MHST, das Neves FD, Barbosa GA. Influence of CAD/CAM on the fit accuracy of implant-supported zirconia and conbaltchromium fixed dental prostheses. J Prosth Dent 2014 [In Press].
