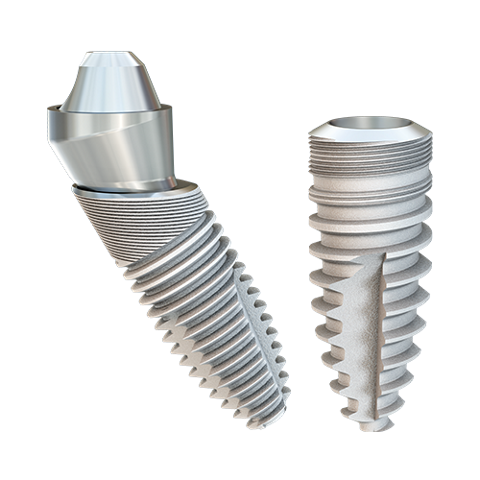

QUATTROCONE

World first - the most innovative implant concept from MEDENTiKA®.

Quattrocone is a highly innovative implant concept. It is not only particularly suited for use in the QuattroFix (All-on-four treatment concept) combined with immediate function/loading, but also for soft bone, for the immediate implantation in extraction sockets and in aesthetically critical areas.

  • Conical design and a progressive micro-macro thread ensure above average primary stability – even in unfavourable bone bed conditions.
  • The system is the best choice for immediate implantation. The tapered implant apex also offers additional options for narrow gaps.
  • The Quattrocone30 implant – named after its implant shoulder inclined at a 30° angle – adds a new dimension in the treatment of edentulous or inclined atrophied jaws.



Surface

The highly pure, sand-blasted and acid-etched surface extends the entire length of the implant to the implant shoulder. It has ideally dimensioned micro-macro roughness to allow the apposition of bone-forming cells, thus promoting optimum and particularly reliable long-term osteointegration of the implant. In combination with the coronal micro-thread and conical interface it ensures exceptional crestal bone formation, past the implant shoulder to the interface.

Crestal micro-thread

The crestal micro-thread promotes the permanent apposition of bone cells and their retention in the crestal region. With subcrestal insertion, in combination with the high precision conical inner connection, it produces apposition of the bone past the shoulder to the interface.

Implant connection

Deep initial conical implant connection distributes the forces deep into the implant and ensures high mechanical stability. Only four possible rotation positions for a clear positioning of the abutment.

Implant shape

The implant body of the Quattrocone implant extends in a root shaped pattern and, in combination with a high-profile thread and 3 cutting edges, ensures high primary stability, even in challenging situations. Perfect for immediate implant placement and immediate loading.

Macro-thread

Maximum primary stability in all bone conditions with newly developed high-profile thread. It is self-tapping and gentle on the bone, despite extremely high primary stability. Short insertion time thanks to a thread pitch of 1 mm per turn.

Quattrocone30

Specially developed and patented for the QuattroFix (All-on-four treatment concept) and all indications with angled implant insertion. Unique:



Implant shoulder 30°

Shoulder angled at 30°. For final positioning flush with the bone when positioning at a 30° incline when using QuattroFix.

Surface

The highly pure, sand-blasted and acid-etched surface extends the entire length of the implant to the implant shoulder. It has ideally dimensioned micro-macro roughness to allow the apposition of bone-forming cells, thus promoting optimum and particularly reliable long-term osteointegration of the implant. In combination with the coronal micro-thread and conical interface it ensures exceptional crestal bone formation, past the implant shoulder to the interface.

Microstructure

Crestal micro-groove structure. For perfect bone retention with the QuattroFix treatment.

Implant shape

The implant body of the Quattrocone30 implant extends in a root shaped pattern and, in combination with a high-profile thread and 3 cutting edges, ensures high primary stability, even in challenging situations. Perfect for immediate implant placement and immediate loading.

Macro-thread

Macro-thread geometry developed for a 30° inclined position. 30° thread flanks ideally transfer the forces in the bone. No implant tilting. Reduced thread pitch to 0.60 mm enables precise vertical positioning and rotational alignment of the implant body in the bone and guarantees very high primary stability.

Implant connection

Specially developed, very deep primary conical implant connection distributes the forces applied at a 30° angle deep into the implant and ensures high mechanical stability reserves. Only one possible rotational position excludes incorrect positioning of the abutment.
