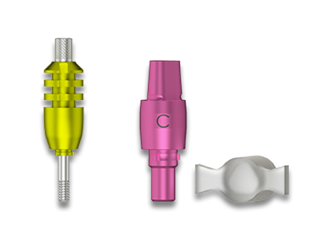

The impression is taken with prefabricated, highly precise and rotationally secure implant pick-ups for the open/closed impression technique.

The implant pick ups are color-coded according to the color of the implant manufacturer.

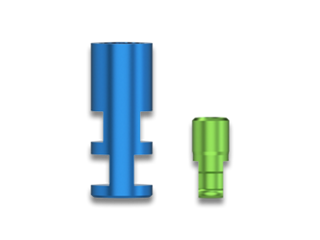

The model is fabricated using prefabricated, highly recise, rotationally secure laboratory implants made of stainless steel, which are inscribed for better differentiation.

Highly precise repositionable, radially and axially absolutely positionally stable laboratory analogues specially developed for printed models for the digital impression.

The laboratory implants are color-coded according to the color of the implant manufacturer.

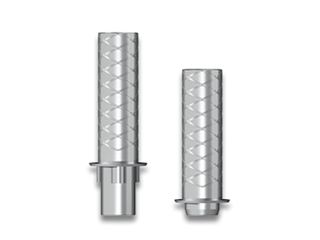

Rotating and non-rotating temporary abutments are ideal for easy, quick fabrication of multi-unit temporary restorations. The equally extremely reasonable purchase price of these abutments makes them even more attractive.

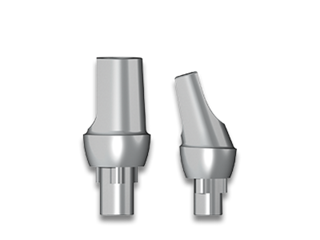

Standard abutments are ideal for cementable crowns and bridges in the aesthetically demanding region. The choice of two gingival heights reduces customised modifications in the shoulder area and shortens the processing time. Standard abutments are available in straight and angled designs.

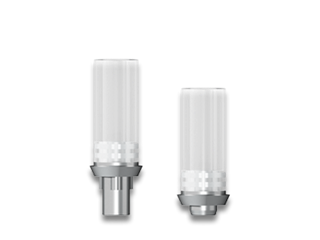

The castable gold abutment has versatile applications. Occlusally screw-retained single crowns, customised abutments for cementable bridge restorations and primary crowns for the compensation of implant divergences in telescope restoration work can be fabricated with the aid of the cast-on technique. The castable gold abutment consists of a prefabricated, cast-on platform made from high-fusing precious metal alloy and a screw chimney made from non-residual burnout plastic.

Occlusally screw-retained, multi-unit restorations can be fabricated with the aid of the cast-on technique.The rotating castable gold abutments consist of a prefabricated, cast-on platform made rom high-fusing precious metal alloy and a screw chimney made from non-residual burnout plastic.

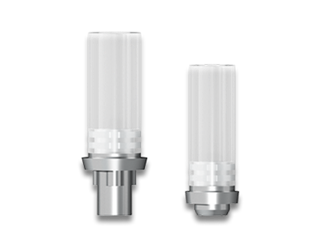

The new CoCr abutments from MEDENTiKA® open up new, efficient treatment options. You can simply and cost-effectively cast on non-precious-metal alloys.

Rotating CoCr abutments allow fabrication of multi-unit restorations.

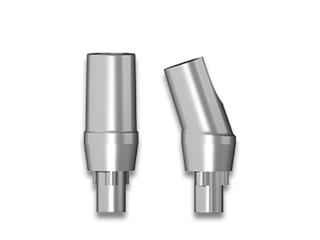

The solid abutment can be used for cementable crown, bridge and telescope restorations. It consists of a titanium alloy and can be custom trimmed. This allows compensation of divergences of the implant axis by appropriate adaptation of the shape.

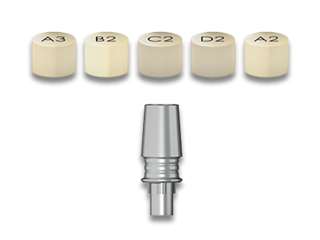

The patent-protected POC abutment opens up diverse possibilities for the design of highly customised implant prosthetic abutments. POC (press-on ceramics) means that a special, leucite-reinforced ceramic can be pressed gap-free on the metal platform of the POC abutment in the corresponding CTE range according to acustomised wax pattern. Customised, emergence profiles can be very easily and cost-effectively pressed in the anterior and posterior region of the upper and lower jaw using POC abutments.

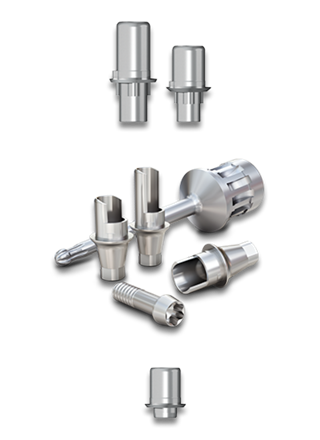

MEDENTiKA® titanium bases – original diversity ensures excellent prosthetics. MEDENTiKA® titanium bases are compatible with very different indications and are available for all conventional implant systems.

MEDENTiKA® titanium bases are always original – regardless of whether they are used as rotating titanium bases for multi-unit restorations or indexed titanium bases with a short or long chimney for single-tooth restorations.

The titanium base for angled screw channel has been developed in particular for prosthetically demanding indications. There exists the opportunity now to place the screw channel orally in the esthetic zone or if there is an unfavorable implant position.

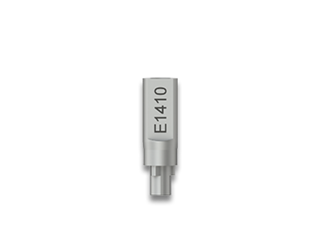

The scanbodies are suitable for intraoral and conventional use in the scanner. All scanbodies are made from titanium thus ensuring much higher precision and durability. The scanbodies with a special surface treatment can be sterilised and are labeled for better differentiation. The scanbodies are required for using titanium bases and also for designing custom MedentiCAD abutments.

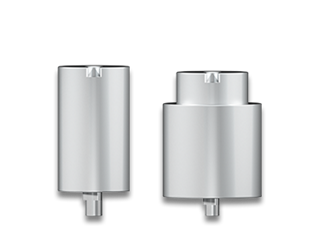

Highly precise PreFace abutments as milling blanks. For creating MEDENTiKA® abutments for digital use firstly, a design software from 3Shape, Exocad or Dental Wings is required and secondly the original MEDENTiKA® abutment library for PreFace abutments.

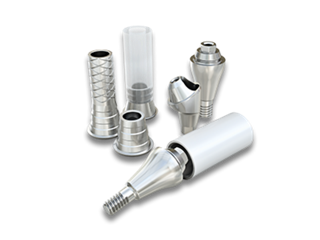

The Multi-unit abutment supports a variety of prosthetic restorations. Thus it is ideal for creating patient oriented individual hybrid restorations or being the base for an individualized restoration in the esthetic zone.

• for all relevant implant brands and various platforms
• in straight and angled configurations 17° und 30°
• in various gingiva heights
• great variety of prosthetic components

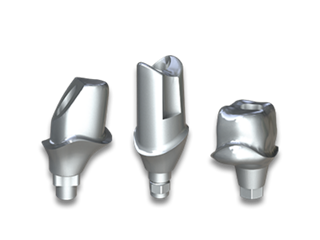

You work with a CADCAM system from 3Shape, Dental Wings or Exocad: Then you can design your own customised abutments with the aid of our free MedentiCAD library.

You do not work with a CADCAM system ...no problem! You model your abutment with the aid of our MedentiCAD modelling base and we manufacture it for you.

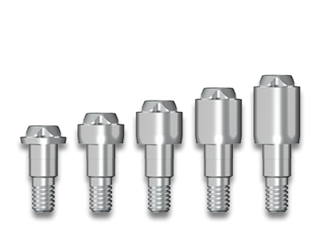

Using the MedentiBASE abutment you have the option of fabricating the most varied, multi-unit conventional or CADCAM manufactured bar and bridge restorations in the upper and lower jaws. You can choose between direct screw-retained bar and bridge restorations or screw-retained bar and bridge restorations with the aid of the MedentiBASE adhesive base for a passive fit.

MedentiBASE abutments are available in 5 different gingival heights.

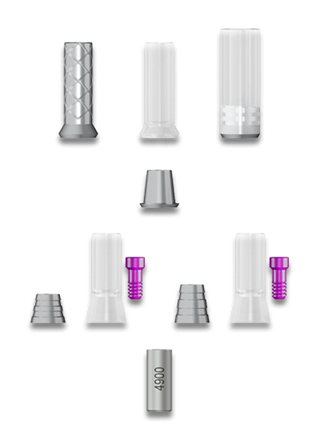

• MedentiBASE titanium cap
• MedentiBASE plastic cap
• MedentiBASE castable gold cap

• MedentiBASE titanium base

The MedentiBASE titanium base is available in the chimney height of 3.5 mm. It is suitable for adhesive retention of multi-unit bridges and bars, in particular fabricated using ceramic materials and resin materials. The original MEDENTiKA® library is available for the digital design.

• MedentiBASE adhesive cap

MedentiBASE adhesive caps are available in the heights 3.0 mm (short) and 4.00 mm (long). They can be used to fabricate multi-unit, screw-retained bar and bridge restorations for a passive fit using metal materials.
The original MEDENTiKA® library is available for the digital design.

• MedentiBASE scanbody

The MedentiBASE scanbody can be used for scanning the model situation and digitisation. The MedentiBASE library, which is required for the design of the framework, can of course be obtained from MEDENTiKA® free of charge. This is now available for 3shape, Dental Wings and Exocad.

• MedentiBASE closure cap
• MedentiBASE implant pick-up
• MedentiBASE laboratory implant
• MedentiBASE laboratory implant CADCAM
• MedentiBASE placement instrument M 11-6

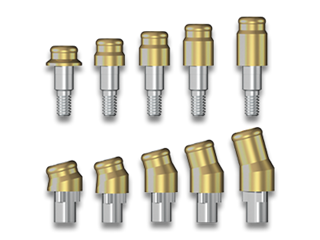

The MedentiLOC abutment is highly precise and compatible with the Novaloc matrix system.

The MedentiLOC abutment is a particularly attractive economic alternative for the retention of overdentures. The simple approach with the option of administering chairside treatment is also an outstanding feature of the MedentiLOC abutment. The angled MedentiLOC abutments provide the possibility for the first time of effectively compensating for the divergences between implants.

The MedentiLOC abutments are available in 5 different gingival heights.

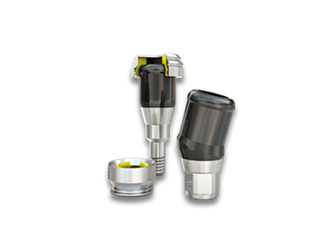

The Novaloc abutment is a further development of our MedentiLOC abutments and provides a completely wear-free, mirror-smooth surface, which is almost as hard as diamond. The smallest possible opening on the head prevents the accumulation of food residue.

The angled Novaloc abutments provide the possibility for the first time of effectively compensating for the divergences between implants.

Novaloc abutments are available in 5 different gingival heights.

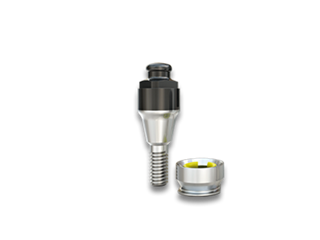

The Optiloc abutment combines the advantages of the Novaloc abutment with the minimal space requirements of the ball attachment. It provides a completely wear-free, mirror-smooth surface, which is almost as hard as diamond.

Optiloc abutments are available in 5 different gingival heights.
