Section cuts
The next pages show the original implants. On the left with the fitted MEDENTiKA® abutment and on the right with the abutment of the respective original manufacturer.
What does precision in detail mean?
A picture is worth a thousand words. See for yourself and take a critical look at what characterizes a MEDENTiKA® Original.
Quality is demonstrated most clearly in a direct comparison – and we love transparency. For this reason we have prepared section cuts of both our abutments and also those of the original manufacturer. The illustration reveals every single design and manufacturing feature. With these photographs we want to show you that we do not simply copy, but refine, whenever possible and appropriate.
C-Series| compatible with Altatec / Camlog® Screw-Line – Root-Line 2
1 Gap dimensions on the preliminary tube segment are practically identical to the original.
2 Vertical transmission of the tube segments is practically identical to the original.
MEDENTiKA ABUTMENT C 9000 *
ALTATEC® CAMLOG SCREW-LINE - ROOT-LINE 2 **
CX-Series | compatible with Medentis Medical / ICX
1 High precision manufactured conical section in terms of full-surface contact in the vertical extension.
2 Emergence profile takes the physiology of the gingiva into account.
3 Reduced gap dimensions on the preliminary tube ensure solid absorption of the horizontal forces exerted on the abutment.
MEDENTiKA ABUTMENT CX 1200 *
MEDENTIS MEDICAL® ICX **
E-Series | compatible with Nobel Biocare / NobelReplace® Tapered

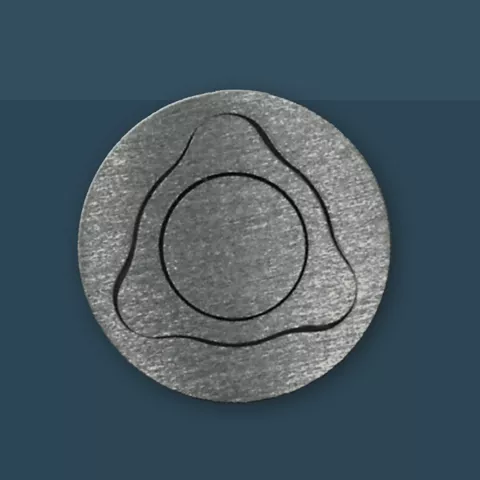

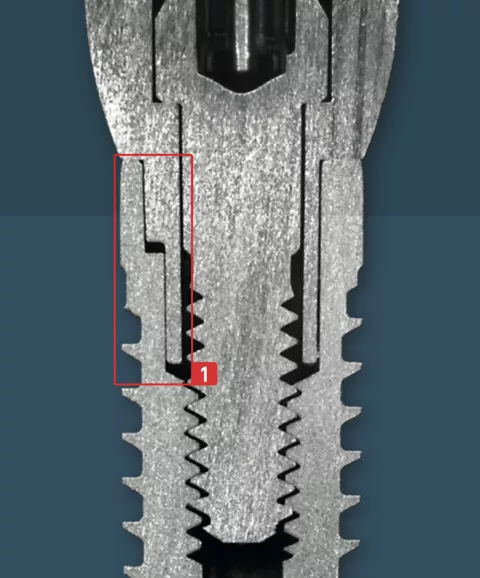

1 Reduced gap dimensions (see horizontal section below) on the preliminary cylindrical segments ensure reduced relative movements between the implant and abutment. This reduces the stress on the abutment screw and "micro-pump effect" of the system
MEDENTiKA ABUTMENT E 100-1 *

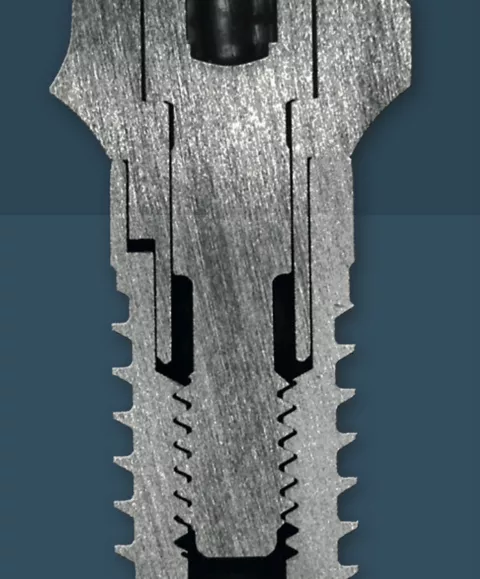

NOBEL BIOCARE® NOBELREPLACE® TAPERED **
1 Reduced gap dimensions on the preliminary cylindrical segments ensure less relative movement between the implant and abutment. This reduces the stress on the abutment screw and "micro-pump effect" of the system.
MEDENTiKA ABUTMENT E 100-1 *
NOBEL BIOCARE® NOBELREPLACE® TAPERED **
EV-Series| compatible with Dentsply Implants / ASTRA TECH OsseoSpeed® EV
1 Very precise conical fit with deep transmission in the conical section.
MEDENTiKA ABUTMENT EV 110 *

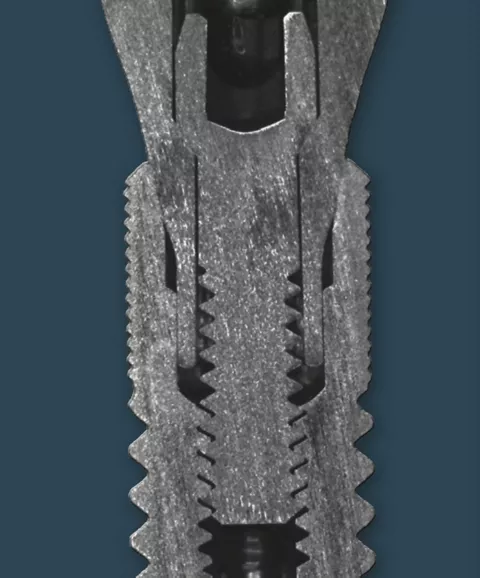

DENTSPLY IMPLANTS® ASTRA TECH OSSEOSPEED® EV **
F-Series | compatible with Nobel Biocare NobelActive® / NobelReplace® Conical

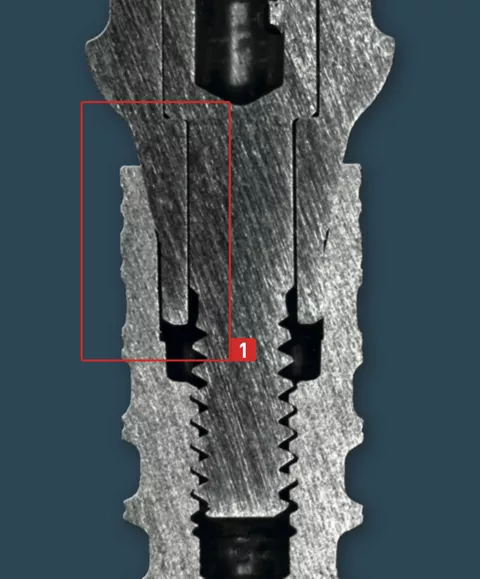

1 A precisely manufactured conical section ensures full contact on the implant cone. A hex in the implant with the smallest possible gap dimensions ensures minimum rotation and axial stabilisation. A solid screw shank finally stabilizes the abutment with horizontal force application.
MEDENTiKA ABUTMENT F 100 *
NOBEL BIOCARE® NOBELACTIVE®/NOBELREPLACE® CONICAL **
R-Series | compatible with Zimmer Dental Tapered Screw-Vent® / MIS SEVEN Internal Hex BioHorizons Tapered Internal, Internal Plus, Tapered Tissue Level

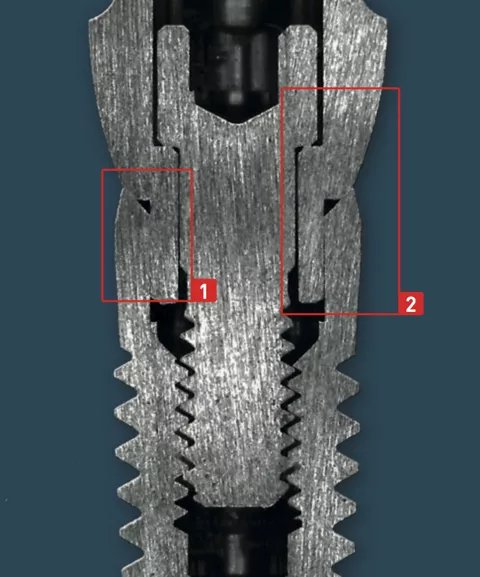

1 Reduced gap dimensions in the hex for decreased rotation and increased axial stabilisation.
2 Shorter, more solid abutment screw for stabilisation of the abutment by horizontal force application.
MEDENTiKA ABUTMENT R 100 *

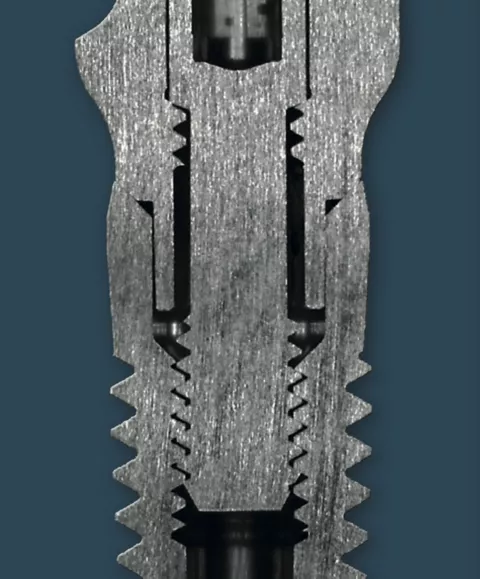

ZIMMER DENTAL® TAPERED SCREW-VENT® **
T-Series | compatible with DENTSPLY Implants / XiVE® S
1 The gap in the first cylindrical segment is significantly reduced. This reduces the relative movement of the abutment to the implant and the force this exerts on the abutment screw.
2 The gap in the second segment is also reduced and ensures much deeper transmission. Deepest possible transmission of the forces ensures higher axial stabilisation of the abutment in the implant.
MEDENTiKA ABUTMENT T 105

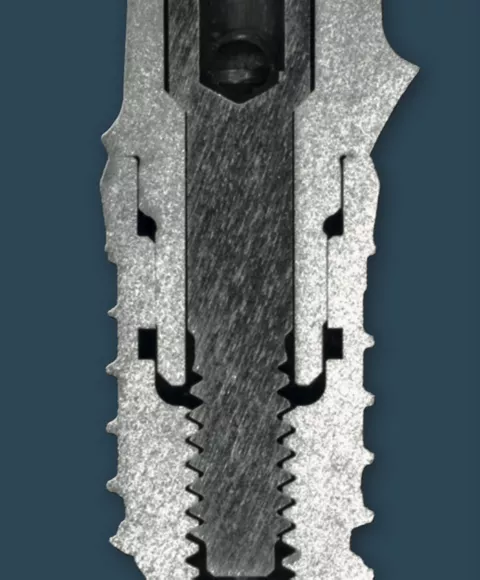

DENTSPLY IMPLANTS® XIVE**
* All MEDENTiKA abutments are displayed with the original implant from the manufacturer.
** All original implants are shown with original abutments from the respective manufacturer.
