NEODENT® NEOARCH®

REMOTE ANCHORAGE & ADVANCED FULL ARCH SOLUTIONS (ZYGOMATIC & PTERYGOID)

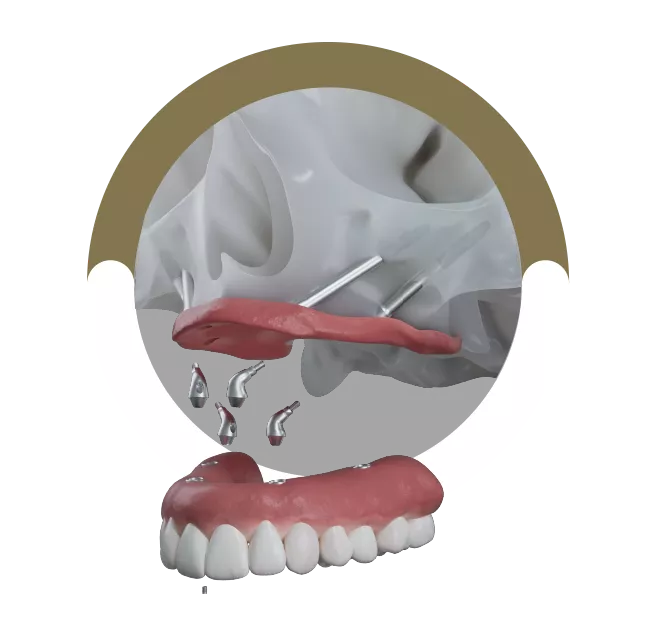

IMMEDIATE* SOLUTION FOR SEVERELY ATROPHIC MAXILLA

Potential for immediate* function in shorter treatment times, if graft procedures are avoided.
SURGICAL PROTOCOL

Designed to overcome challenging procedures in the extra maxillary zygomatic region
PROSTHETIC VERSATILITY FOR REHABILIATION NEEDS

Several gingival heights & angulations combined with an anatomical shape

Zygomatic Implants

Neodent® Zygoma GM and GM Zygoma-S are part of the NeoArch® Grand Morse™ solution, designed for immediate* fixed treatment protocols targeting esthetic and functional improvements.

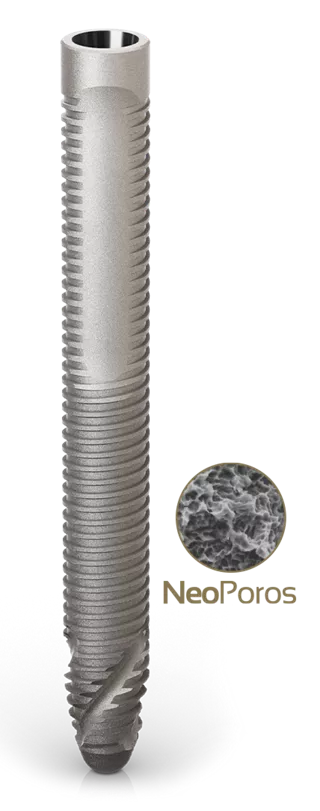

Zygoma GM

  • GRAND MORSE® CONNECTION
  • IMPLANT DESIGN
    • Tissue protect portion without threads for the contact with the mucosa.
    • Progressive increase of the thread depth at the apical area.
  • COMPREHENSIVE PORTFOLIO
    • 4.0 mm diameter
    • Ten different lengths: 30 / 35 / 37.5 / 40 / 42.5 / 45 / 47.5 / 50 / 52.5 / 55 mm.

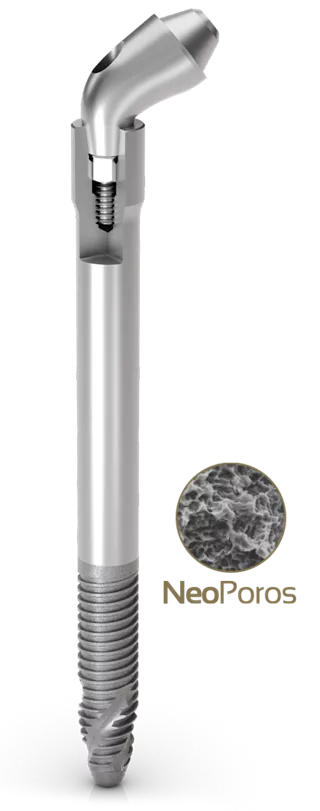

GM Zygoma-S

  • GRAND MORSE® CONNECTION
  • IMPLANT DESIGN
    • Implant designed for an extrasinus path.
    • Associated with regular implants or Quad Z placement.
    • Smooth Machined Surface in the implant body aimed at maintaining soft-tissue preservation.
    • Coronal portion with 4.3mm of diameter designed to ensure resistance and a tight fit for an optimal connection seal.
  • COMPREHENSIVE PORTFOLIO
    • 3.5mm and 3.75mm of diameter.
    • Ten different lengths: 30 / 35 / 37.5 / 40 / 42.5 / 45 / 47.5 / 50 / 52.5 / 55 mm
DOWNLOAD ZYGOMA-S BROCHURE

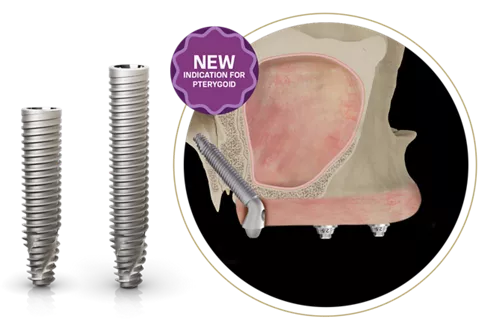

PTERYGOID IMPLANTS

The Neodent Helix® GM (18mm) with Ø3.75 and Ø4.0 diameters and Helix® GM Long implants are indicated for surgical installation in the pterygoid region (upper jaw), for multiple unit restorations, when combined with 45°**/45°** Slim GM Mini Conical Angled Abutments, in cases of severe jaw resorption, in order to restore patient esthetics and chewing function****.
  • Implants in the pterygoid indication should be used in splinted applications that utilize at least two implants.
  • Various implant lengths to provide adequate anchorage
DOWNLOAD PTERYGOID FLYER

**The 45º/45º Slim Mini Conical Abutment are indicated for use only with Pterygoid implants (GM Helix Ø3.75/ Ø4.0 x 18mm and GM Helix LG), Zygoma GM and GM Zygoma-S.
****Refer to the instructions for use available at ifu.neodent.br for the complete pterygoid indication labeling

NEODENT ADVANCED FULL ARCH EDUCATION COURSES & MENTORSHIP

Discover lecture, cadaver, and live-patient surgery advanced courses for full arch rehabilitation of extremely severe atrophic maxilla cases. Attendees will learn comprehensive diagnosis, treatment planning, advanced surgical techniques beyond conventional surgery (Zygomatic and Pterygoid placement), and digital or conventional workflows
DOWNLOAD COURSE CATALOG

PROSTHETIC VERSATILITY

The Neodent® NeoArch® restorative portfolio includes abutments of varying shapes, angulations, and gingival heights to address different clinical needs.

*For immediate load application, the primary stability must be at least 35 N.cm and the patient must present with physiological occlusion
**The 45º/45º Slim Mini Conical Abutment are indicated for use only with Pterygoid implants (GM Helix Ø3.75/ Ø4.0​ x 18mm and GM Helix LG), Zygoma GM and GM Zygoma-S.
***The 52º/60º Mini Conical Abutment are indicated for use only with Zygoma GM and GM Zygoma-S.

Targeting surgical simplicity & predictability

Neodent provides a complete range of products designed to bring simplicity to the dental practice and predictability during the surgeries.

1. Helix GM® Compact Surgical Kit

2. Helix GM® Long Compact Surgical Kit

3. Zygoma GM™ Surgical Kit

4. GM Zygoma-S Surgical Kit



 1. Helix GM®

2. Helix GM® Long

3. Zygoma GMTM

4. GM Zygoma-S
Full Guided Surgery procedure

✔

✔


Initial Guided Surgery procedure

✔

✔
Compact Surgical kits

✔

✔


Short drills designed to allow less vibration.*

✔

✔

*A Spade drill and a new initial lateral cutting drill: More precision for the initial osteotomy
